BGA & SMD Rework Station
Description

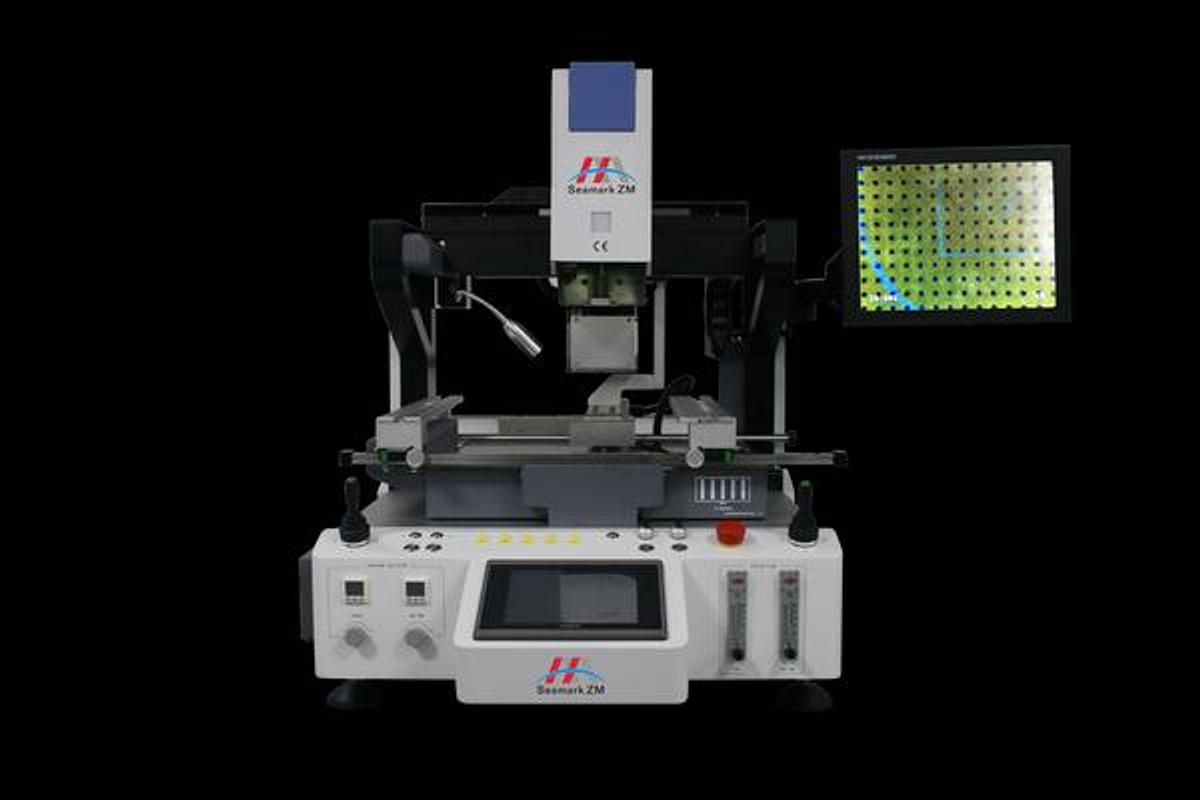

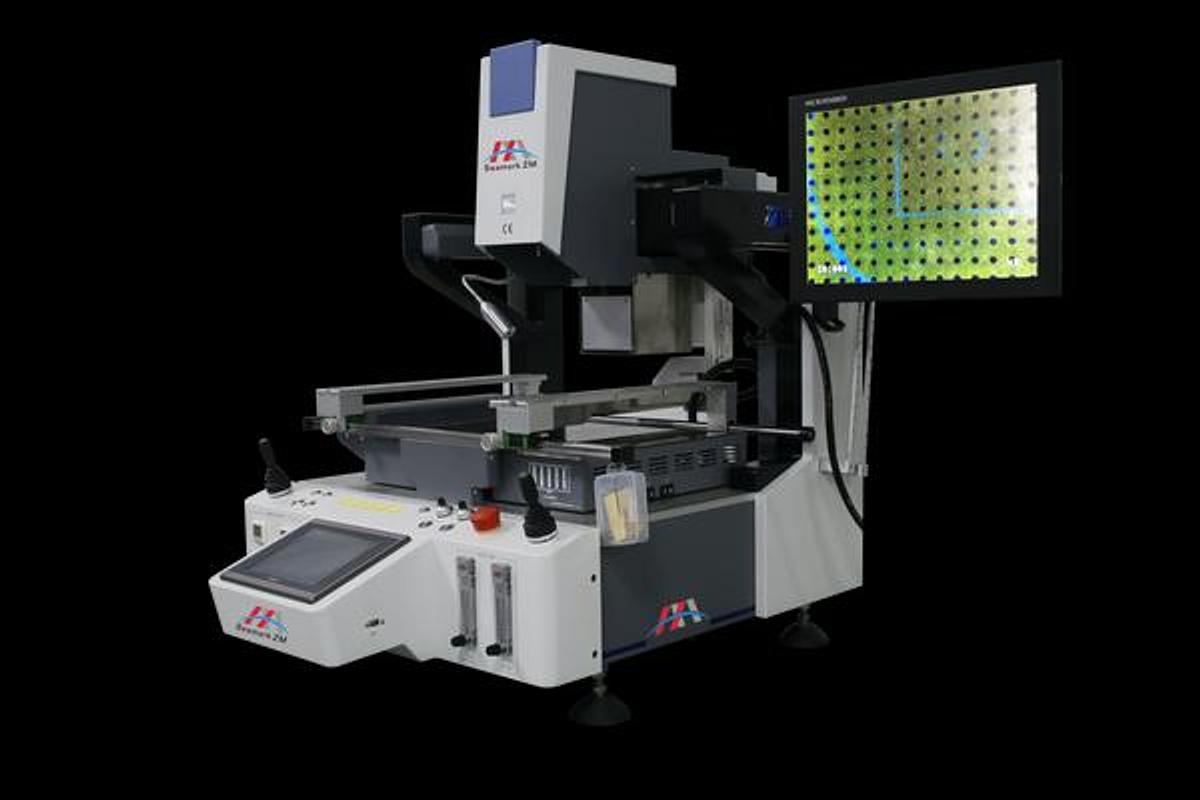

The Zhuomao ZM-R7830A BGA Rework Station is a high-end Nitrogen Capable Rework System. Great to help increase yield with Lead Free Solders and a no clean process. Place SMD components as large as 80mm with the high-resolution motorized vision system.
All of our systems include 1 year parts warranty and lifetime technical support from our USA based locations.
Specifications:
Accessories:
4 top nozzles, 2 Bottom nozzles. Hardware for PCB boards, set of suction cups, external thermo-couple, auxiliary temperature sensors, auxiliary heating elements (1×hot air, 1×IR), monitor, operating and manual.
Allow 2 to 4 weeks for delivery.
Specifications
| Manufacturer | Unknown |
| Model | ZM-R7830A |
| Condition | Used |
| Power | AC 380V 50/60Hz |
| Total power | Max 6800W |
| Heater power | Top heater 800W, bottom 800W, IR 5000W |
| Electrical materials | Servo Drive system (Panasonic) +Panasonic PLC+8”Touch screen |
| Temperature control | K-type (Closed Loop) |
| Positioning | V-groove, PCB support + laser automatic positioning |
| Pcb size for | Max 470×550mm Min 15×20 mm |
| Bga chip for | Max 80×80mm Min 2×2 mm |
| Dimensions | L890×W790×H1000mm |
| Sensors | 4 |
| Weight | 140kg |
$47,000
